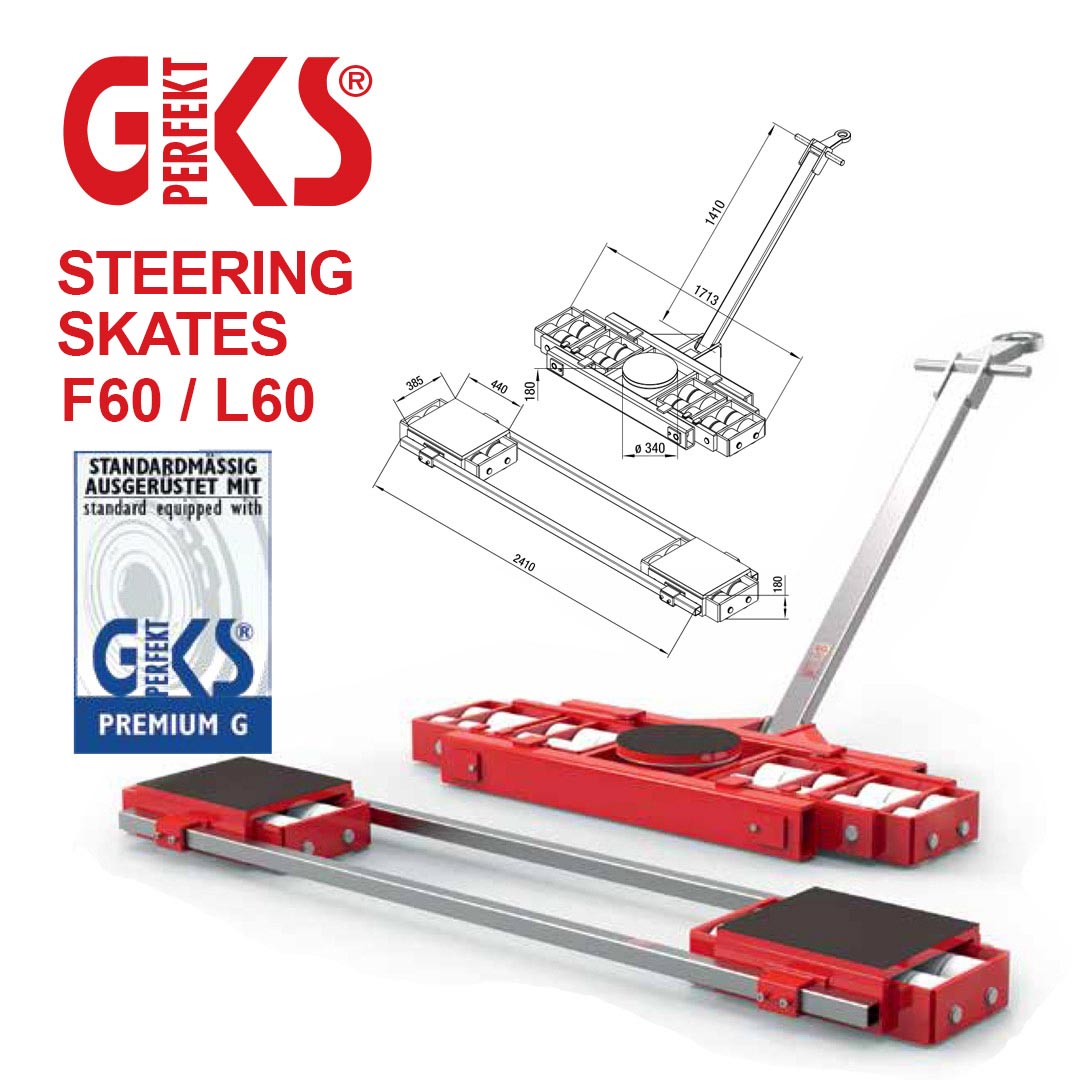

Steering Skates F60 / L60
For loads with the weight up to 120 tonnes
Сharacteristics:
- The skates are combinable with all the skates of equal height
- Two connecting bars for the better stability
- Total capacity of 1200kN (120 t)
Technical data | F60 | L60 |
|---|---|---|
Loading height / number of wheels (85 x 85 mm) | 180 mm / 24 | 180 mm / 24 |
Contact surface per cartridge | 390 x 440 mm | - |
Connecting Rod | - | - |
Swivel plate Ø 170 mm, steering angel | - | ± 90° |
Guide bar | - | 1620 mm |
Overall dimensions (L x W) | - | 835 x 1690 mm |
Tare weight | 290 kg | 435 kg |
Load Capacity | 600 kN (60 t) | 600 kN (60 t) |
Optionals / Strengths
Can be combined with the Tandem trolleys of identical loading height.
