rotating trolley, rotating trolley RL2
YOU ARE HERE:  HOME / ROTATING TROLLEY / RL2

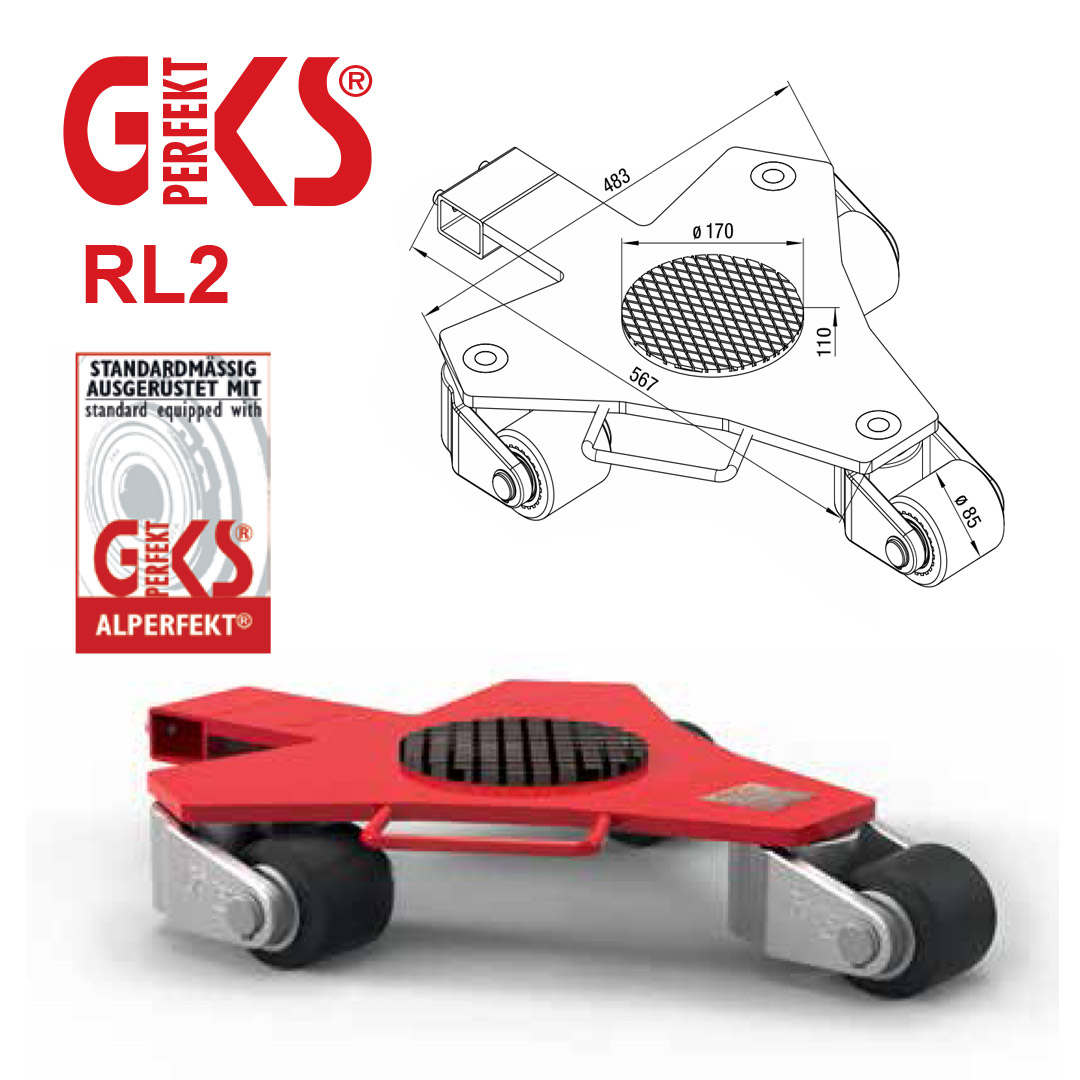

Rotating skates RL 2

For loads with the weight up to 2 tonnes

For moving heavy loads in different directions.


Сharacteristics:
  • The rotating skates RL with equal height can be combinable with guide trolleys and create 3-4 point support (optional)
  • On demand can be realized with the wheels PUR GKS-ALPERFEKT for delicate surfaces
Technical data
RL2
Number of wheels / Dimensions
3 / 85 x 85 mm
Loading height
110 mm
Overall dimensions (L x W x H)
567 x 483 x 110 mm
Tare weight in kg
30Kg
Load capacity
20 kN (2 t)

Optionals / Strengths

RL trolleys with the same loading height can be combined, as shown, as 3 or 4-point supports with a connecting bar and steering rod (optional).
